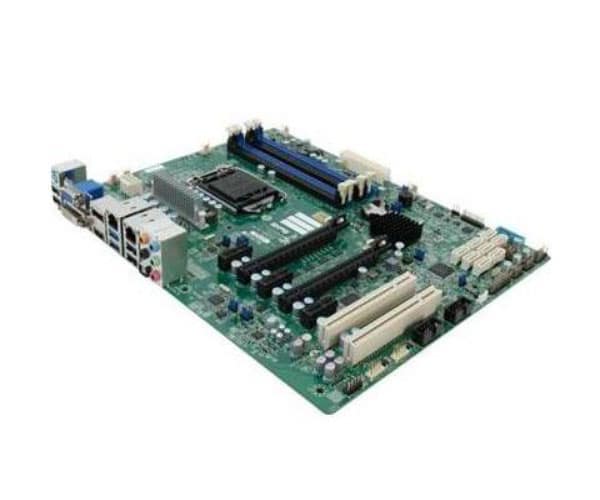

Mainboard Server Supermicro MBD-X10SAE-O

– Single socket H3 (LGA 1150) supports
-Intel® Xeon® E3-1200 v3, 4th gen.
-Core i3/i5/i7 processors
– Intel® C226 Express PCH
– Up to 32GB DDR3 ECC/non-ECC
– 1600MHz UDIMM in 4 sockets
– Dual Gigabit Ethernet LAN ports
– (1x Intel® i217LM & 1x Intel® i210AT)
– 8x SATA3 (6Gbps)
– 2x PCI-E 3.0 x16, 3x PCI-E 2.0 x1,
– and 2x PCI 5V 32-bit slots
– 6x USB 3.0 (2 rear + 4 via headers)
– 10x USB 2.0 (4 rear + 6 via headers)
– HD Audio 7.1 channel connector by
– Realtek ALC1150
– 1x DOM power connector and
– 1x SPDIF Out Header
– UEFI BIOS support
