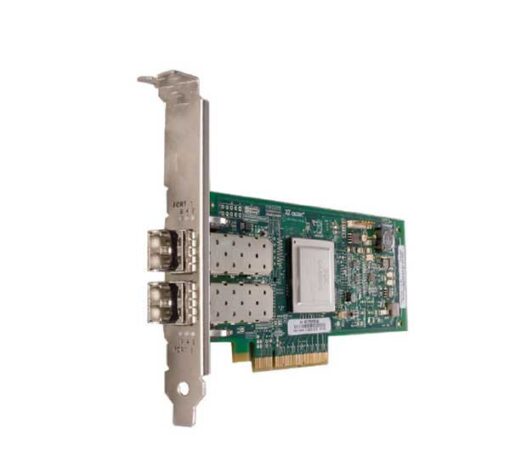

کارت HBA سرور کیولاجیک QLE2562

مشخصات فنی کارت HBA سرور کیولاجیک QLE2562

• Qlogic Fibre Channel Host Bus Adapter QLE2562
• Ports: Dual 8Gbps Fibre Channel SFP+ with LC-style connector
• Form factor: Low-profile PCI Express card (6.6 in. × 2.54 in.)
• Power Consumption: 6.2 Watts (typical)
• Operating Relative Humidity: 10% to 90% (non-condensing)
• RoHS Compliance: RoHS 6
• Negotiation : 8/4/2Gbps auto-negotiation
• IOPS: 200,000 initiator and target IOPS per port
• Class of service: 2 and 3
• Topology: FC-AL, FC-AL2, point-to-point, switched fabric
• Protocols : FCP-3-SCSI,FC-Tape (FCP-2)
• Cable distances:
  •  2Gbps: 150 meters OM1, 300 meters OM2, 500 meters OM3
  • 4Gbps: 70 meters OM1, 150 meters OM2, 380 meters OM3=
  • 8Gbps: 21 meters OM1, 50 meters OM2, 150 meters OM3
• Compliance :
  • PCI Express Base Specification rev. 2.0
  • PCI Express Card Electromechanical Specification rev. 2.0
  • PCI Bus Power Management Interface Specification rev. 1.2
  • PCI Hot Plug Specification rev. 1.0
    • PCIe x8 physical connector:
    • StarPower link training
    • Maximum x4 lanes for Gen2 rate
    • Maximum x8 lanes for Gen1 rate
• Management tools:
  • SANsurfer® FC HBA Manager
  • SANsurfer FC HBA CLI
• Device utilities :
  • Utilities for flashing bootcode
  • Linux® scripting tools
• Boot support : BIOS, FCode, UEFI, EFI
• APIs: SNIA HBA API V2, SMI-S, FDMI
• EMI and EMC : FCC Part 15, Subpart B, Class A; ICES-003, Class A
• Safety : UL, cUL: UL60950, CSA C22.2 No.60950, Class 1 Laser Product per DHHS 21CFR J
