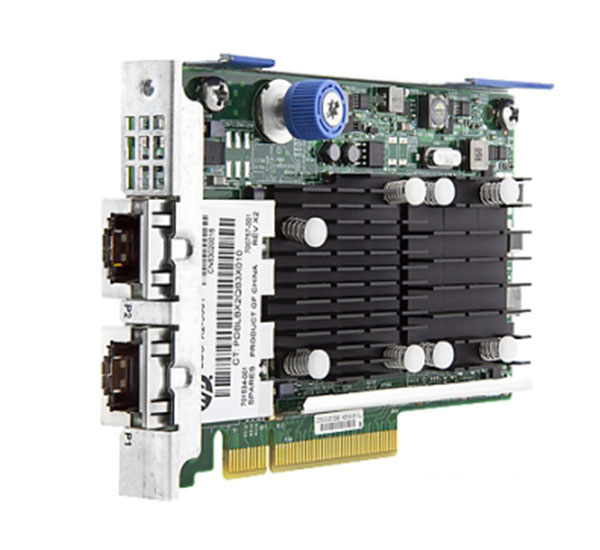

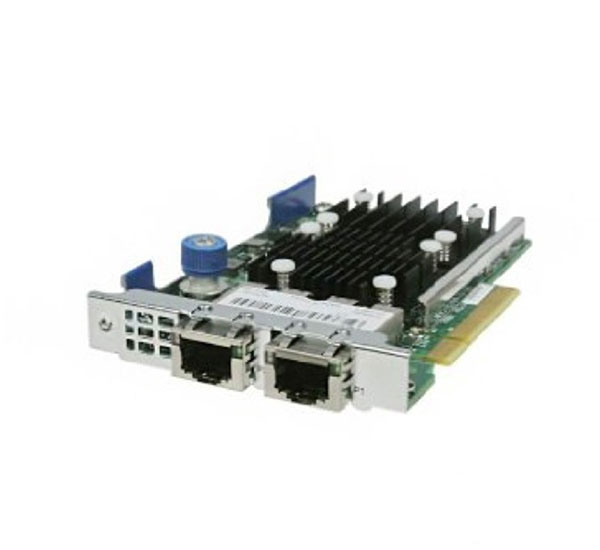

کارت شبکه سرور اچ پی ۵۳۳FLR-T 2Port 700759-B21

مشخصات فنی کارت شبکه سرور اچ پی ۵۳۳FLR-T 2Port  ۷۰۰۷۵۹-B21 :

Specification
HPE FlexFabric 533FLR-T – network adapter
Device Type Network adapter
Form Factor Plug-in card
Interface (Bus) Type PCI Express 2.0 x8
PCI Specification Revision PCIe 2.0
Ports 10Gb Ethernet x 2
Cabling Type Ethernet 10GBase-T
Data Link Protocol GigE, 10 GigE
Data Transfer Rate 10 Gbps
Processor 1 x BCM57810S – Broadcom
RAM 256 MB
Compliant Standards IEEE 802.3, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IEEE 802.1Qbg, IEEE 802.2x
System Requirements SuSE Linux Enterprise Server 11 for x86/AMD64/Intel EM64T, SuSE Linux Enterprise Server 10 for x86/AMD64/Intel EM64T, Microsoft Windows Server 2008, Microsoft Windows HPC Server 2008, Microsoft Windows Small Business Server 2011 Standard, Microsoft Windows Small Business Server 2011 Essentials, Microsoft Windows MultiPoint Server 2011, Oracle Solaris 10, Red Hat Enterprise Linux 6.1, Red Hat Enterprise Linux 6.2, Red Hat Enterprise Linux 5.7, Citrix XenServer 6.0, Microsoft Windows Server 2012, Red Hat Enterprise Linux 5.8, Red Hat Enterprise Linux 5.9, Red Hat Enterprise Linux 6.3, Citrix XenServer 6.1, VMware vSphere 5.0, VMware vSphere 4.1
Manufacturer Warranty 1-year warranty
Designed For Apollo 4200 Gen9, 4520 Gen9; ProLiant DL180 Gen10, DL20 Gen10, DL20 Gen9, DL325 Gen10, DL360 Gen10, DL360p Gen8, DL380 Gen10, DL560 Gen10, DL560 Gen9, DL580 Gen10, XL170r Gen10, XL170r Gen9, XL190r Gen10, XL190r Gen9, XL230a Gen9, XL450 Gen10; SimpliVity 325 Gen10, 380 Gen10; StoreEasy 1850, 3850

Extended Specification
General
Device Type Network adapter
Form Factor Plug-in card
Interface (Bus) Type PCI Express 2.0 x8
PCI Specification Revision PCIe 2.0
Compatibility Information
Designed For HPE Apollo 4200 Gen9 for Google, 4520 Gen9 ¦ HPE ProLiant DL180 Gen10 SMB, DL180 Gen9, DL180 Gen9 Base, DL180 Gen9 Entry, DL180 Gen9 Storage, DL20 Gen10, DL20 Gen10 Entry, DL20 Gen10 Performance, DL20 Gen10 solution, DL20 Gen9, DL20 Gen9 Entry, DL20 Gen9 Performance, DL20 Gen9 Solution, DL325 Gen10 Base, DL360 Gen10, DL360 Gen10 Base, DL360 Gen10 Entry, DL360 Gen10 High Performance, DL360 Gen10 Low, DL360 Gen10 Network Choice, DL360 Gen10 Performance, DL360 Gen10 SMB, DL360 Gen10 SMB Network Choice, DL360 Gen10 Solution, DL360p Gen8, DL360p Gen8 CMS, DL360p Gen8 Performance, DL360p Gen8 Special Server, DL380 Gen10, DL380 Gen10 Base, DL380 Gen10 Entry, DL380 Gen10 Entry SMB, DL380 Gen10 for Cohesity DataPlatform, DL380 Gen10 High Performance, DL380 Gen10 Network Choice, DL380 Gen10 NVMe All Flash Server for Datera, DL380 Gen10 Performance, DL380 Gen10 SMB, DL380 Gen10 Solution, DL380 Gen9 High Performance, DL380p Gen8 Performance, DL385p Gen8, DL385p Gen8 Dedicated Workload, DL385p Gen8 Entry, DL385p Gen8 Storage, DL385p Gen8 Storage Centric, DL560 Gen10, DL560 Gen10 Base, DL560 Gen10 Entry, DL560 Gen10 Performance, DL560 Gen8, DL560 Gen8 Base, DL560 Gen8 Entry, DL560 Gen8 Performance, DL560 Gen9, DL560 Gen9 Base, DL560 Gen9 Entry, DL560 Gen9 Performance, DL580 Gen10, DL580 Gen10 Base, DL580 Gen10 Entry, DL580 Gen10 Performance, DL80 Gen9 Entry, SL250s Gen8 2U PCIe Gen3 Left Tray, SL250s Gen8 2U PCIe Gen3 Right Tray, SL270s Gen8 1U Left Half Width Tray, SL270s Gen8 1U Right Half Width Tray, SL270s Gen8 Base 4U Left Half Width Tray, SL270s Gen8 Base 4U Right Half Width Tray, SL270s Gen8 SE 4U Left Tray, SL270s Gen8 SE 4U Right Tray, XL170r Gen10, XL170r Gen9, XL190r Gen10, XL190r Gen9, XL230a Gen9 Compute Tray, XL230a Gen9 Compute Tray (12G), XL230a Gen9 Compute Tray (6G), XL230a Gen9 NHP Compute Tray (12G), XL450 Gen10 ¦ HPE SimpliVity 325 Gen10 Node, 380 Gen10 Node ¦ HPE StoreEasy 1850, 3850 Gateway Single Node
Environmental Parameters
Humidity Range Operating 5 – 95% (non-condensing)
Max Operating Temperature 55 °C
Min Operating Temperature 0 °C
Expansion / Connectivity
Interfaces 2 x 10GBase-T – RJ-45
Manufacturer Warranty
Service & Support Limited warranty – 1 year
Miscellaneous
Compliant Standards FCC Class A certified, UL, VCCI Class A ITE, EN55024, EN55022 Class A, ICES-003 Class A, WEEE, RoHS, BSMI Class A, EN 61000-3-2:2006, EN 61000-3-3:2008
Networking
Cabling Type Ethernet 10GBase-T
Compliant Standards IEEE 802.3, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IEEE 802.1Qbg, IEEE 802.2x
Connectivity Technology Wired
Data Link Protocol Gigabit Ethernet, 10 Gigabit Ethernet
Data Transfer Rate 10 Gbps
Features Auto-negotiation, Jumbo Frames support, PXE support, Large Send Offload (LSO), Receive Side Scaling (RSS), TCP Segmentation Offload (TSO)
Ports 10Gb Ethernet x 2
Status Indicators Port status, link/activity
Processor / Memory
Processor 1 x BCM57810S – Broadcom
RAM 256 MB
Software / System Requirements
OS Required SuSE Linux Enterprise Server 11 for x86/AMD64/Intel EM64T, SuSE Linux Enterprise Server 10 for x86/AMD64/Intel EM64T, Microsoft Windows Server 2008, Microsoft Windows HPC Server 2008, Microsoft Windows Small Business Server 2011 Standard, Microsoft Windows Small Business Server 2011 Essentials, Microsoft Windows MultiPoint Server 2011, Oracle Solaris 10, Red Hat Enterprise Linux 6.1, Red Hat Enterprise Linux 6.2, Red Hat Enterprise Linux 5.7, Citrix XenServer 6.0, Microsoft Windows Server 2012, Red Hat Enterprise Linux 5.8, Red Hat Enterprise Linux 5.9, Red Hat Enterprise Linux 6.3, Citrix XenServer 6.1, VMware vSphere 5.0, VMware vSphere 4.1
