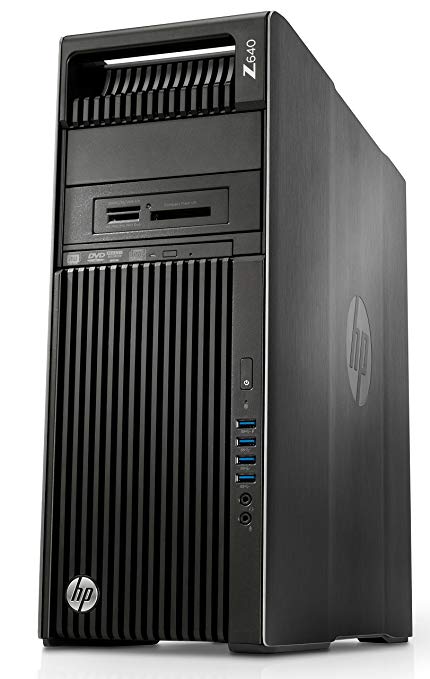

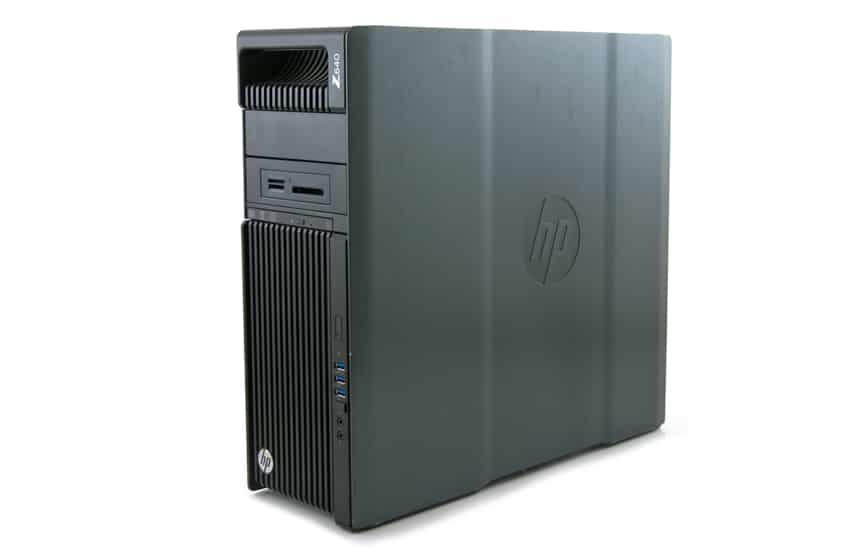

ورک استیشن اچ پی Z640

مشخصات فنی ورک استیشن اچ پی Z640:

دانلود کاتالوگ ورک استیشن

HP Z640 Workstation Specifications

• Form Factor: Rackable tower
• Operating System:
  • Windows 10 Pro 64
  • Windows 10 Home 64
  • Windows 8.1 Pro 64
  • Windows 7 Professional 64
  • Windows 7 Professional 64 (available through downgrade rights from Windows 10 Pro 64)
  • Windows 7 Professional 64 (available through downgrade rights from Windows 8.1 Pro 64)
  • HP Installer Kit for Linux
• Processor Family
  • Intel Xeon E5 2600 v4 processors
  • Intel Xeon E5 2600 v3 processors
  • Intel Xeon E5 1600 v4 processors
  • Intel Xeon E5 1600 v3 processors
• Chipset: Intel C612
• Memory:
  • ۲۵۶ GB DDR4-2400 ECC Registered RAM
  • ۴ DIMM (with 1 processor) and 8 DIMM (with 2 processors)
  • Transfer rates up to 2400 MT/s. Only registered and load-reduced ECC DIMMs are supported.
• Drive Controllers:
  • Integrated SATA 6.0 Gb/s;
  • LSI 9217-4i4e 8-port SAS 6.0 Gb/s RAID (optional);
  • LSI MegaRAID 9270-8i SAS 6.0 Gb/s ROC RAID Card and iBBU09 Battery Backup Unit (optional);
  • Factory integrated RAID available for SATA/SAS drives (RAID 0, 0 Data, 1, 5, and 10);
  • Factory integrated RAID available for PCIe SSDs (RAID 0 Data)
• Internal Storage:
  • ۳۰۰ GB up to 600 GB SAS (15000 rpm)
  • ۳۰۰ GB up to 1.2 TB SAS (10000 rpm)
  • ۵۰۰ GB up to 4 TB SATA (7200 rpm)
  • ۵۰۰ GB SATA SED (7200 rpm)
  • ۱۲۸ GB up to 1 TB SATA SSD
  • ۲۵۶ GB up to 512 GB SATA SED SSD
  • ۱ TB (8 GB cache) SATA SSHD
  • ۲۵۶ GB up to 512 GB HP Z Turbo Drive (PCIe SSD)
  • ۲۵۶ GB up to 1TB HP Z Turbo Drive G2 (PCIe SSD)
  • ۵۱۲ GB (2 x 256 GB) up to 2 TB (4 x 512 GB) HP Z Turbo Quad Pro (PCIe SSD)
• Optical Storage: Slim SATA DVD-ROM; Slim SATA SuperMulti DVD writer; Slim SATA BDXL Blu-ray writer
• Additional Storage: 15-in-1 media card reader (optional); HP DX115 Removable HDD Frame/Carrier (optional)
• Available Graphics:
  • Professional 2D: NVIDIA NVS 310 (1 GB); NVIDIA NVS 315 (1 GB); NVIDIA NVS 510 (2 GB)
  • Entry 3D: NVIDIA Quadro K420 (2 GB); NVIDIA Quadro K620 (2 GB); AMD FirePro W2100 (2 GB)
  • Mid-range 3D: NVIDIA Quadro M2000 (4 GB); NVIDIA Quadro K2200 (4GB); NVIDIA Quadro K1200 (4 GB); AMD FirePro W4300 (4GB); AMD FirePro W5100 (4GB)
  • High-end 3D: NVIDIA Quadro M6000 (24 GB); NVIDIA Quadro M5000 (8 GB); NVIDIA Quadro M4000 (8GB); AMD FirePro W7100 (8GB)
  • High performance GPU computing: NVIDIA Tesla K40
• I/O Controller: HP IEEE 1394b FireWire PCIe (optional) HP Thunderbolt 2 PCIe 1-port I/O Card (optional)
• Audio: Integrated Realtek HD ALC221
• Communications: 10 Integrated Intel I218LM PCIe GbE;Intel I210-T1 PCIe GbE (optional);HP X540-T2 10 GbE Dual Port Adapter (optional);HP X520 10 GbE Dual Port Adapter (optional);HP 10 GbE SFP+SR Transceiver (optional);HP 361T PCIe dual-port gigabit (optional);Intel 7260 802.11 a/b/g/n PCIe WLAN (optional);Intel 8260 802.11 a/b/g/n/ac with BlueTooth 4.2 PCIe NIC (optional)
• Expansion Slots: 2 PCIe Gen3 x16; 1 PCIe Gen3 x8 (open-ended); 1 PCIe Gen2 x4 (open-ended); 1 PCIe Gen2 x1 (open-ended); 1 PCI Open-ended connector allows a greater bandwidth card to be installed physically into a lower bandwidth connector/slot.
• Ports and Connectors
  • Front: 4 USB 3.0; 1 microphone; 1 headset
  • Rear: 4 USB 3.0; 2 USB 2.0; 2 PS/2; 1 RJ-45; 1 audio line in; 1 audio line out
  • Internal: 1 USB 2.0; 1 USB 3.0
• Drive Bays (Internal):
  • Two 3.5″ Drive Bays (External)
  • Two 5.25″; One slim ODD
• Input Devices: HP PS/2 Keyboard; HP USB Keyboard; HP USB SmartCard Keyboard; HP Wireless Keyboard and Mouse; HP PS/2 Business Slim Keyboard; HP USB Business Slim Keyboard; HP Wireless Business Slim Keyboard; HP PS/2 Mouse; HP USB Optical Mouse; HP USB 1000 dpi Laser Mouse; HP USB Optical 3-Button Mouse; HP SpacePilot Pro 3D USB Intelligent Controller; 3Dconnexion CADMouse
• Software: HP Performance Advisor; HP Remote Graphics Software (RGS); Cyberlink PowerDVD/Power2Go; Foxit PhantomPDF Express; Buy Office
• Security: HP Solenoid Hood Lock & Hood Sensor; HP Business PC Security Lock Kit; TPM 1.2 certified
• Power: 925 W 90% efficient, active PFC
• Dimensions (W x D x H):
  • ۶٫۷۵ x 18.3 x 17.5 in
  • ۱۷٫۵ x 46.48 x 44.45 cm
• Weight:
  • ۳۳٫۱ lb
  • ۱۵ kg
  • (Exact weight depends upon configuration.)
• Environmental Specification: Low halogen
• Energy Efficiency Compliance: ENERGY STAR certified and EPEAT registered configurations available
• Compatible Displays: All HP Z Displays and HP DreamColor Displays are supported. For more information see www.hp.com/go/zdisplays
• Warranty: Protected by HP Services, including a limited 3 years parts, 3 years labor, and 3 years onsite service (3/3/3) standard warranty. Certain restrictions and exclusions apply.
