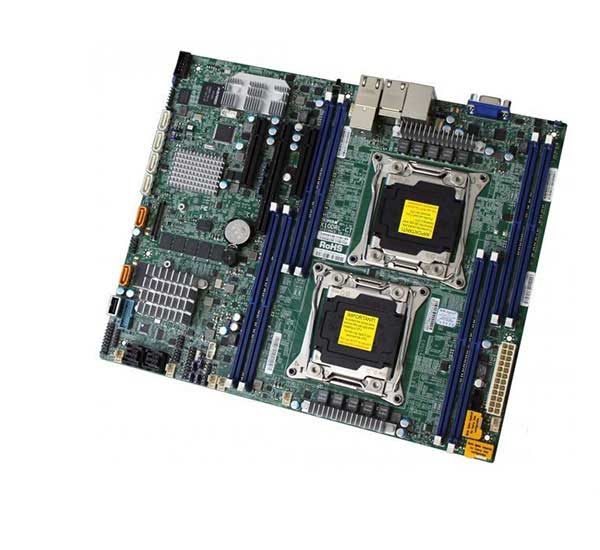

مادربرد سرور سوپر مایکرو X10DRL-CT

مشخصات فنی مادربرد سرور سوپر مایکرو X10DRL-CT :

• Supermicro Server Motherbard Dimensions : 30.48*25.4cm
• Form Factor : ATX
• Device Type : Xeon Board
• Compatible Processors : Intel Xeon processor E5-2600 v4 / v3 family (up to 145W TDP)
• Cache / Cores : Up to 22 Cores / Up to 55MB Cache
• Note : Motherboard supports this maximum TDP. Please verify your system can thermally support.
• Processor Sockets : Dual Socket R3 (LGA 2011)
• QPI : QPI up to 9.6 GT/s
• Error Detection : Corrects single-bit errors
• Memory Voltage : 1.2 V
• Memory Type : 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
• DIMM Sizes : RDIMM: 32GB, 16GB, 8GB, 4GB
• LRDIMM : 64GB, 32GB-3DS LRDIMM: 128GB
• Memory Capacity : 8×288-pin DDR4 DIMM slots-Up to 1TB ECC 3DS LRDIMM, 256 ECC RDIMM
• Network Controllers : Intel X540 10GBase-T controller, Intel i210 Gigabit Ethernet controller-Supports 10GBASE-T, 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output-1xRealtek RTL8211E PHY (dedicated IPMI)
• SAS : LSI 3108 SAS3 (12Gbps) controller, 2GB cache, HW RAID 0, 1, 5, 6, 10, 50, 60-Supports up to 16 devices as default, more HDD devices support is also available as an option *
• SATA : AHCI SATA: SATA3 (6Gbps), RAID 0, 1, 5, 10-SCU SATA: SATA3 (6Gbps), RAID 0, 1, 5, 10
• DOM : 2xSuperDOM (Disk on Module) ports, 1x SATA DOM power connector
• SAS : 8xSAS3 (12Gbps) ports
• SATA : 6xSATA3 (6Gbps) ports, I-SATA 4 and I-SATA 5 support SATA DOM
• Serial Port / Headers : 1xCOM port (1 header)
• TPM : 1xTPM 1.2 20-pin Header
• USB : 4xUSB 3.0 ports (2 rear + 2 via header)-3xUSB 2.0 ports (2 via header + 1 Type A)
• VGA : 1xVGA port
• LAN : 2xRJ45 10GBase-T LAN ports-2xRJ45 Gigabit Ethernet LAN ports-1xRJ45 Dedicated IPMI LAN port
• Expansion Slots Total :1xPCI-E 3.0 x16-2xPCI-E 3.0 x8
