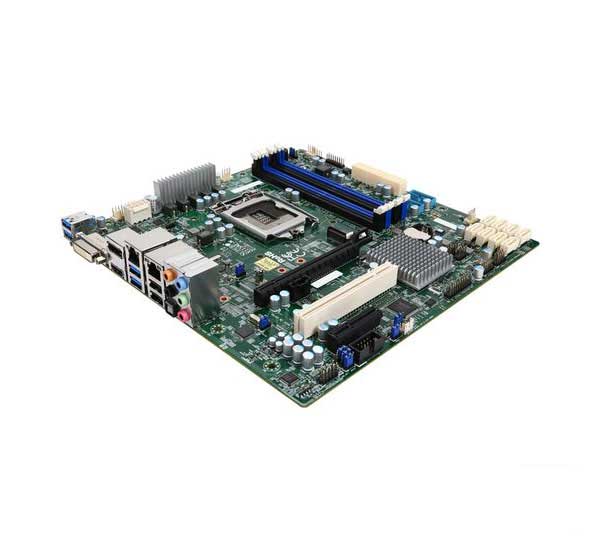

مادربرد سرور سوپرمایکرو X11SAE

مشخصات فنی مادربرد سرور سوپر مایکرو X11SAE :

•  Form Factor : ATX
• Dimensions : 30.48*24.38cm
• Weight : 38.6kg
• CPU : Intel 6th/7th Generation Core i3 series, Intel 6th/7th Generation Core i5 series, Intel 6th/7th Generation Core i7 series, Intel Xeon Processor E3-1200 v6/v5 series
• Memory Capacity : Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots
• DIMM Sizes : 4GB, 8GB, 16GB
• Chipset : Intel C236
• SATA : Intel C236 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10+1PCIe M.2(PCIe x4, 2242/2260/2280)(No Raid Support)
• RJ45 Shared IPMI LAN port
• ۸xUSB2.0 ports (2 rear + 6 via header(s)
• ۶xUSB3.0 ports (2 rear + 4 via header(s)2USB3.1 ports(2 Rear)
• Video Output : 1DVI-D port(s), 1DP (DisplayPort) port(s), 1 HDMI port(s)
• Serial Port / Header: 2xCOM Ports (2 header(s)
