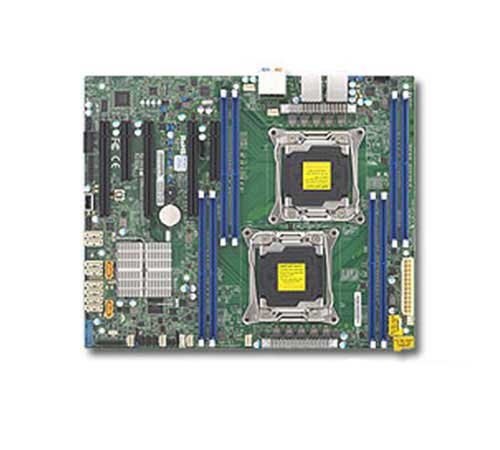

مادربرد سرور سوپرمایکرو X10DAL-I

– Motherboard Dual socket R3 (LGA 2011) supports
– Intel® Xeon® processor E5-2600 v3
– family; QPI up to 9.6GT/s
– Intel® C612 chipset
– Up to 512GB LRDIMM / 256GB RDIMM
– ECC DDR4 2133MHz; 8x DIMM slots
– ۲x PCI-E 3.0 x16, 1x PCI-E 3.0 x8
– (in x16), 1x PCI-E 3.0 x4 (in x8),
– ۱x PCI-E 2.0 x4 (in x8) slot
– Intel® i210 Dual port GbE LAN
– ۱۰x SATA3 (6Gbps) ports w/ Intel
– C612 controller; RAID 0, 1, 5, 10
– ۶x USB 3.0 (4 rear, 2 via header)
– ۳x USB 2.0 (2 via header, 1 Type A)
– ۱ HD Audio with optical S/PDIF
– Thunderbolt Add-On Card support
