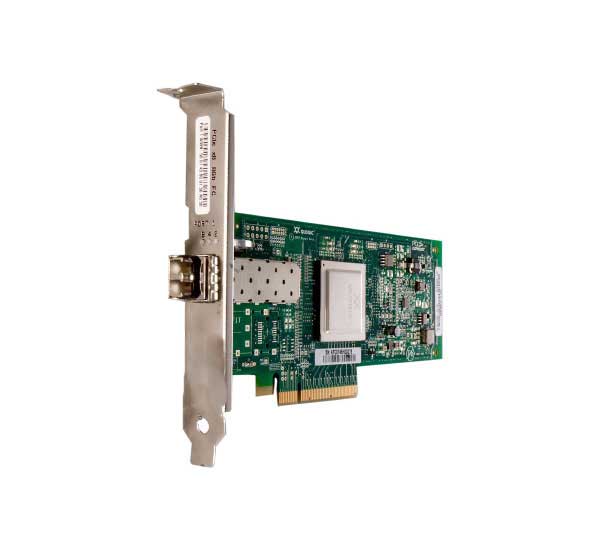

کارت HBA سرور کیولاجیک QLE2560

– Ports : Single 8Gbps Fibre Channel SFP+ with LC-style connector
– Form factor : Low-profile PCI Express card(6.6 in. × 2.54 in.)
– Qlogic Fibre Channel Host Bus Adapter
– Power Consumption: 5.5 Watts (typical)
– Operating Temperature : 0 to 55°C
– Non-Operating Temperature: -40 to 70°C
– Non-Operating Temperature : -40 to 70°C
– RoHS Compliance: RoHS 6
– Negotiation: 8/4/2Gbps auto-negotiation
– IOPS: 200,000 initiator and target IOPS per port
– Class of service : 2 and 3
– Topology: FC-AL, FC-AL2, point-to-point, switched fabric
– Protocols : FCP-3-SCSI/ FC-Tape (FCP-2)
– Hardware platforms : IA32 (x86), IA64, Intel® 64/ AMD™ Opteron64/ Sun™ SPARC®
– Single-Port PCIe-to-8Gbps Fibre Channel Adapter HBA
