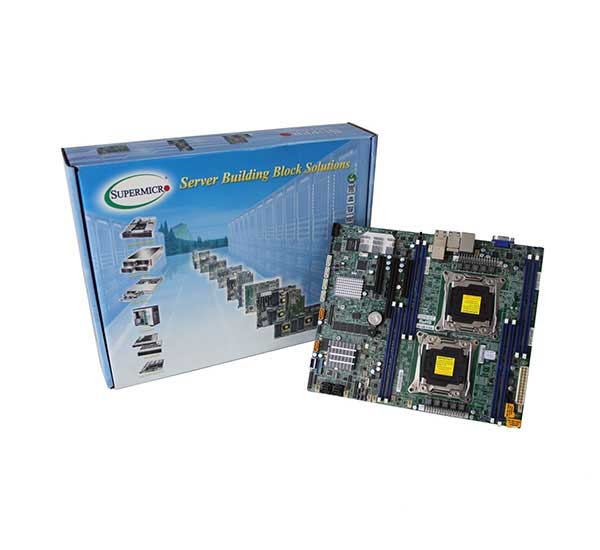

مادربرد سرور سوپر مایکرو X10DRL-C

مشخصات فنی مادربرد سرور سوپر مایکرو X10DRL-C :

• Form Factor : ATX
• Dimensions : 30.48*25.4cm
• CPU : Intel Xeon processor E5-2600 v4†/ v3 family (up to 145W TDP)
• Dual Socket : R3 (LGA 2011)
• System Bus : QPI up to 9.6 GT/s
• DIMM Sizes : RDIMM : 32GB, 16GB, 8GB, 4GB-LRDIMM : 64GB, 32GB-3DS LRDIMM : 128GB
• Supermicro Server Motherbard Chipset : Intel C612 chipset
• AHCI SATA : SATA3 (6Gbps); RAID 0, 1, 5, 10
• SCU SATA : SATA3 (6Gbps); RAID 0, 1, 5, 10
• SAS : 8x SAS3 (12Gbps) ports
• SATA : 6x SATA3 (6Gbps) ports-I-SATA 4 and I-SATA 5 support SATA DOM
• LAN : 2xRJ45 Gigabit Ethernet LAN ports-1xRJ45 Dedicated IPMI LAN port
• USB : 4xUSB 3.0 ports (2 rear + 2 via header)-3xUSB 2.0 ports (2 via header + 1 Type A)
• Video : 1xVGA port
• Serial Port / Header: 1xCOM port (1 header)
• DOM : 2xSuperDOM (Disk on Module) ports-1xSATA DOM power connector
• PCI-Express : 1xPCI-E 3.0 x16-2xPCI-E 3.0 x8
