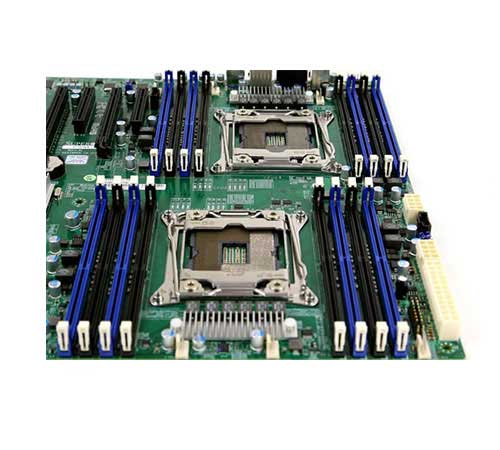

مادربرد سرور سوپرمایکرو X10DAX

– Form Factor : E-ATX
– Dimensions : 30.5cm x 33.0  cm
– CPU Motherboard: Intel® Xeon® processor E5-2600 v3 family
– Cores / Cache : Up to 18 Cores / Up to 45MB Cache
– System Bus : QPI up to 9.6 GT/s
– Memory Capacity : 16x 288-pin DDR4 DIMM slots
– Memory Type: 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
– DIMM Sizes: RDIMM: 32GB, 16GB, 8GB, 4GB
– Memory Voltage: 1.2 V
– Chipset: Intel® C612 chipset
– SATA: 10x SATA3 (6Gbps) ports
– LAN : 2x RJ45 Gigabit Ethernet LAN ports
– Audio : 7.1 HD Audio with optical S/PDIF
– BIOS Type : 128Mb SPI Flash EEPROM with AMI BIOS
– PCI-Express: 3 PCI-E 3.0 x16, 2 PCI-E 3.0 x8, 1 PCI-E 2.0 x4 (in x8)
– LED : CPU / System Overheat LED
– Power Configurations : ACPI / APM Power Management
